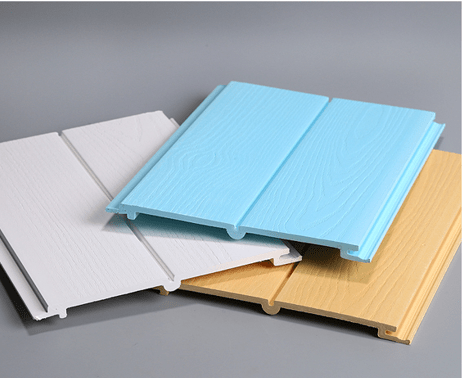

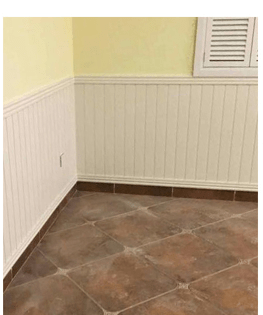

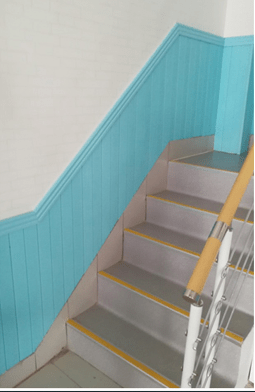

WPC Dado rail & panel production line
This line is mainly used in process WPC Dado rail & panel .
The unit is composed of conical twin-screw extruder, vacuum shaping table, hall-off machine, cutter, laminator, turning-up flame and others. According to the different profile’s section and moulds, you can choose different specifications of extruders to fit.
Main Technical Parameter of Auxiliary
Model | YF210 |
Max product width(mm) | 210 |
Vacuum shaping length(mm) | 2800 |
Draw speed(m/min) | 0-8 |
Cutting saw Dia. (mm) | 400 |
Total power(kw) | 9.2 |
Length of line(m) | 15.5 |
width of line(m) | 1 |
