pvc ceiling panel and clip production line

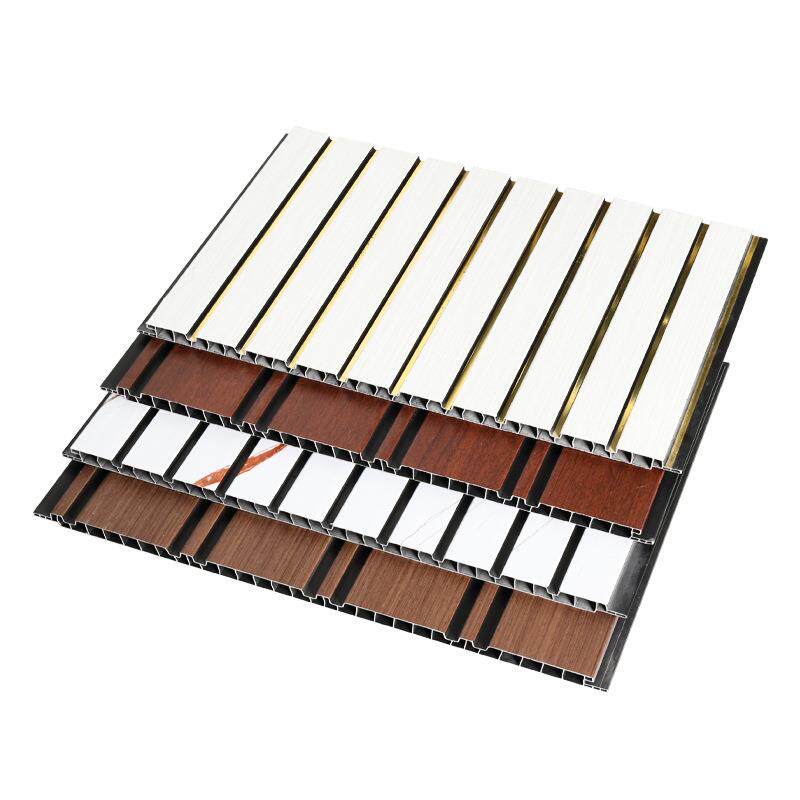

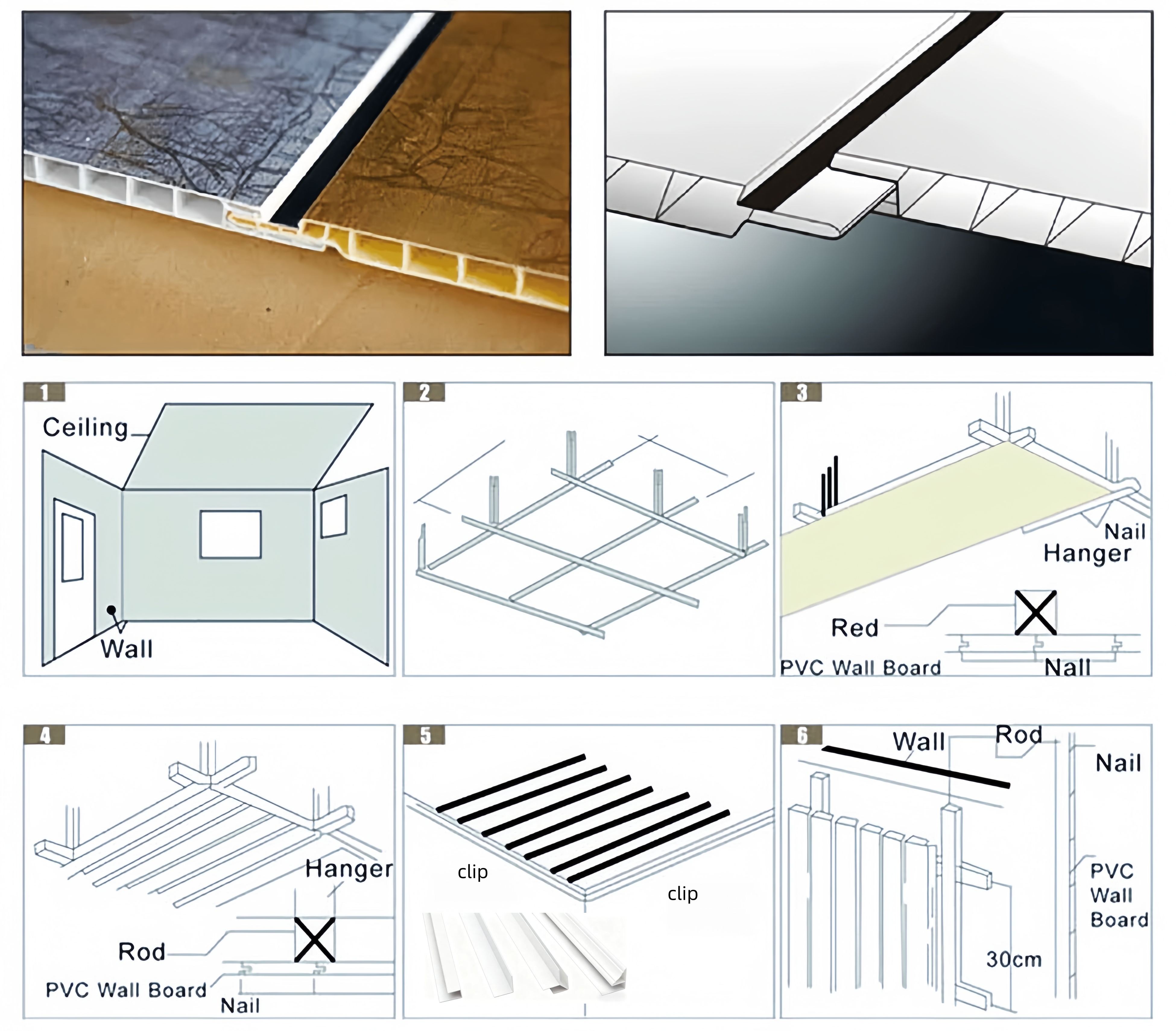

Professional use laser tracking seamless technology in PVC ceiling / panel extrusion , which is mainly used in the area of wall panel, ceiling panel, integrated ceiling, luggage board, ceiling corner etc.

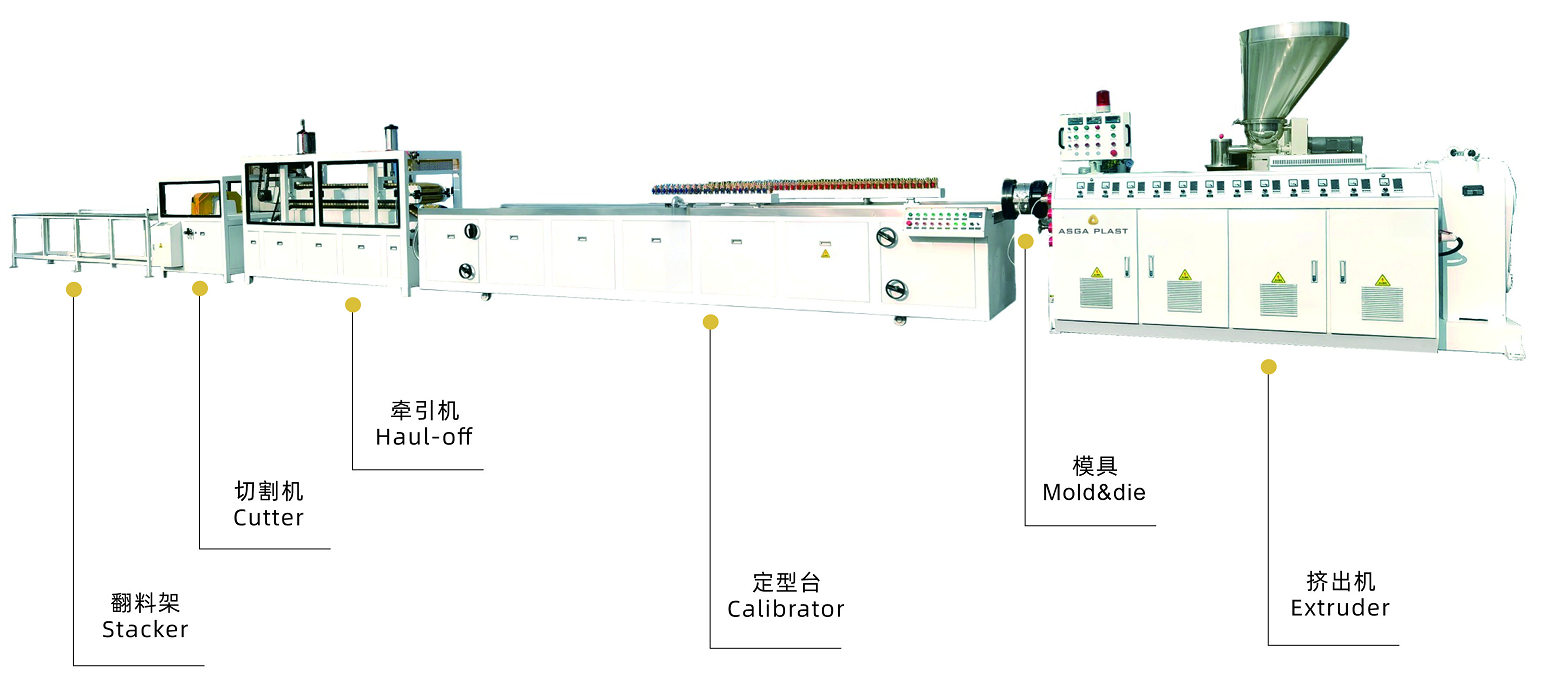

The equipment consists of conical twin-screw extruder, vacuum shaping table, online laminator, haul-off, auto-cutter and stacker.


主机型号 Extruder Model	SJSZ48(50)	SJSZ55	SJSZ65
主机功率（kw） Main Power（kw）	15	22	37
制品宽度(mm) Product width(mm)	200-300	200-600	300-600
辅机功率(kw) Power (kw)	6.5	8	9
挤出量(kg/h) Output (kg/h)	100-140	100-200	150-220
